60 Watt Ebay Laser Purchase and Setup – X700 – Step by Step – A MakerSteve Special Report

So I ordered a laser and I went big!  I had been looking for a CO2 laser for a few months on settled on a 60 Watt, it seemed like middle ground between too weak and too strong.  I could not be happier.  I have successfully etched glass, acrylic, many woods, ceramic cups. powder coated stainless steel tumblers and more to come.

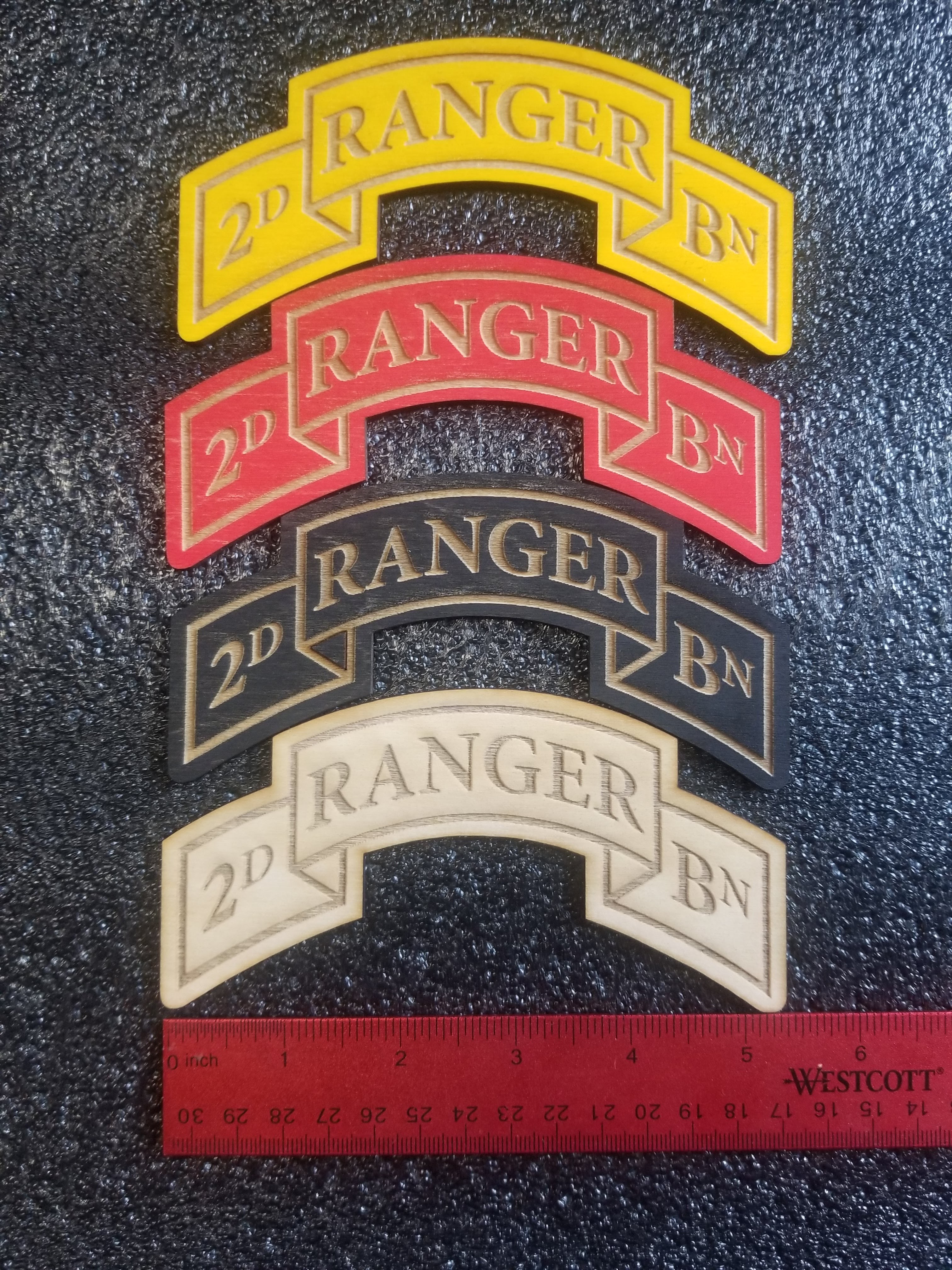

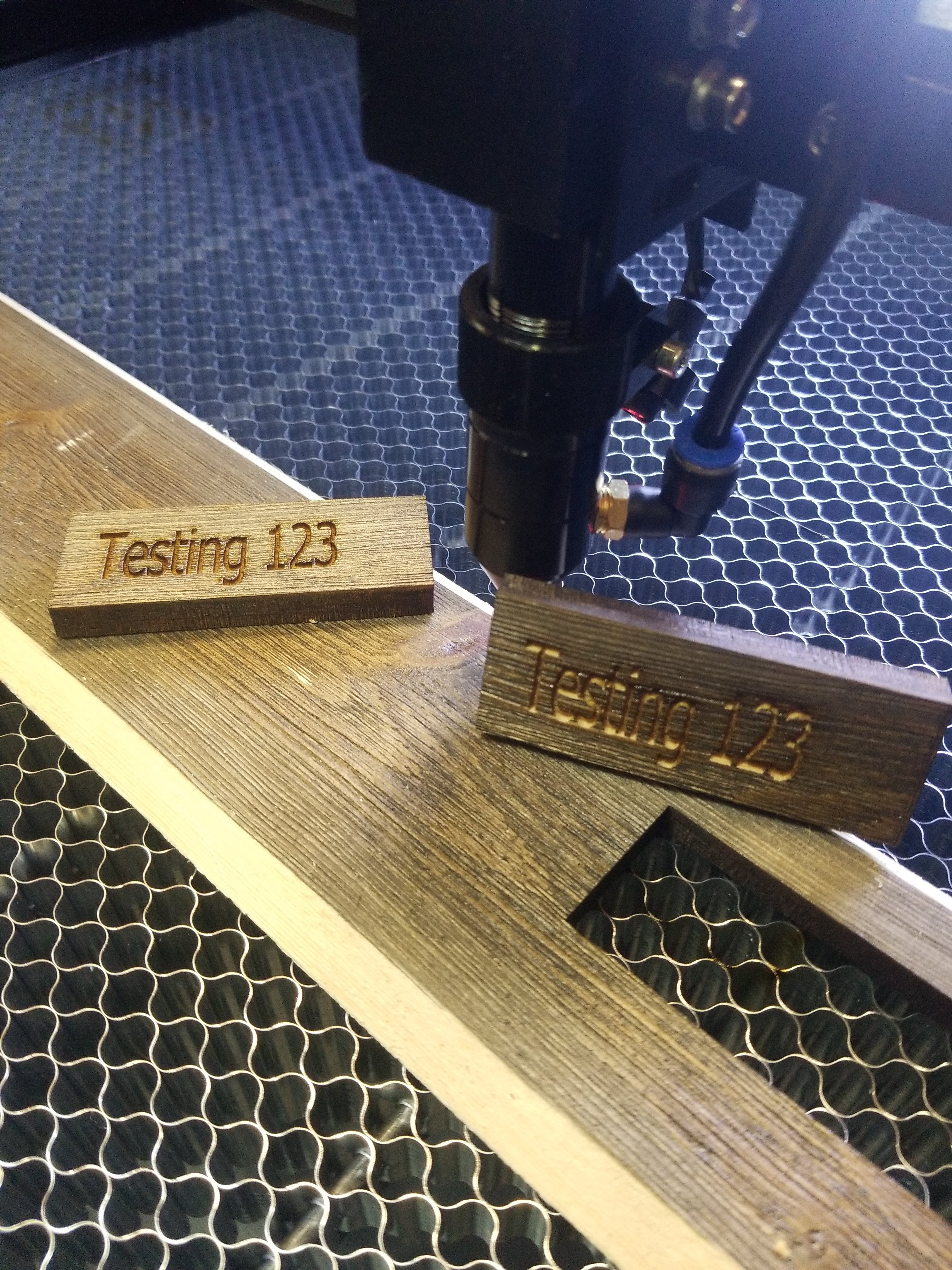

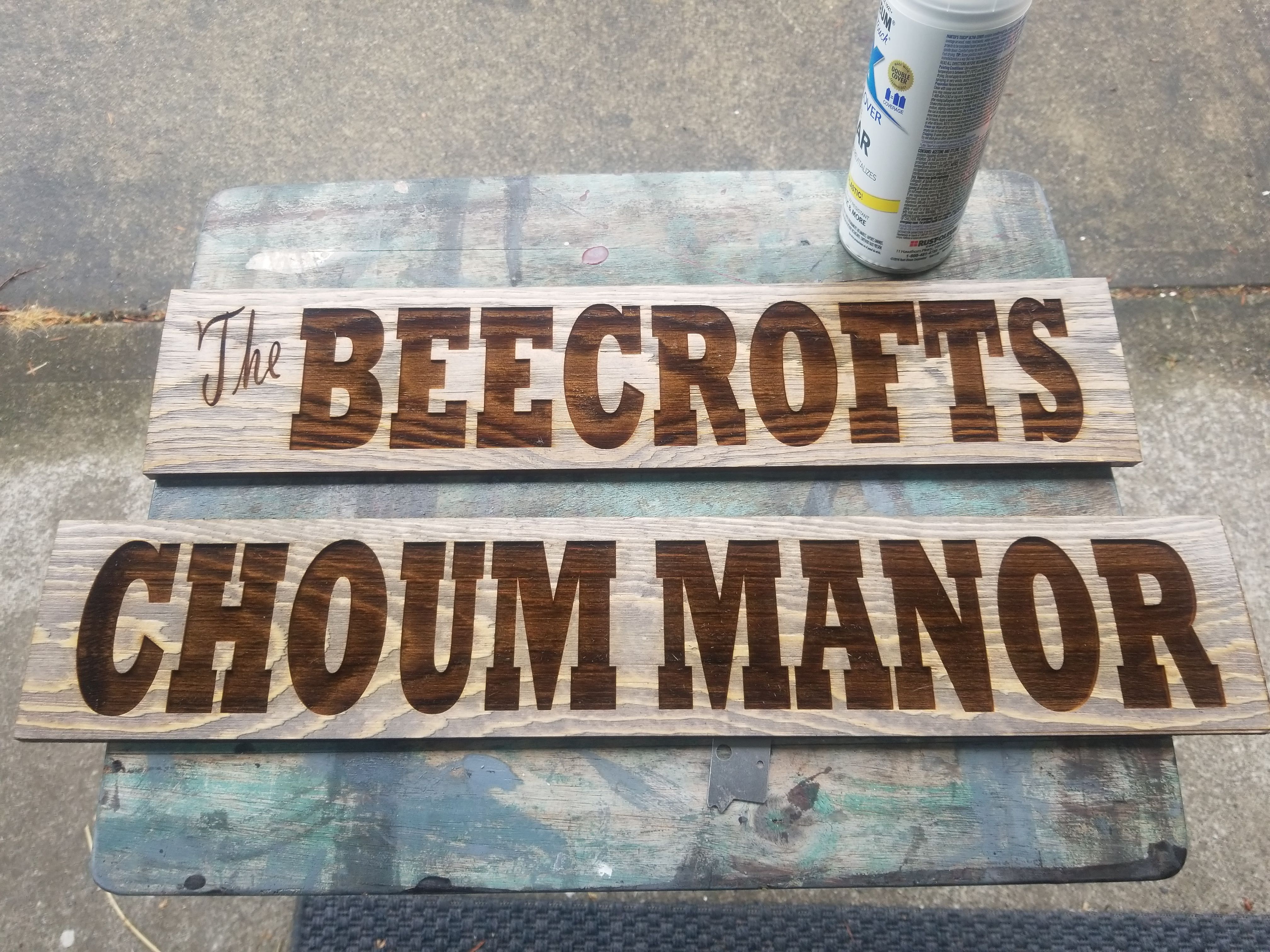

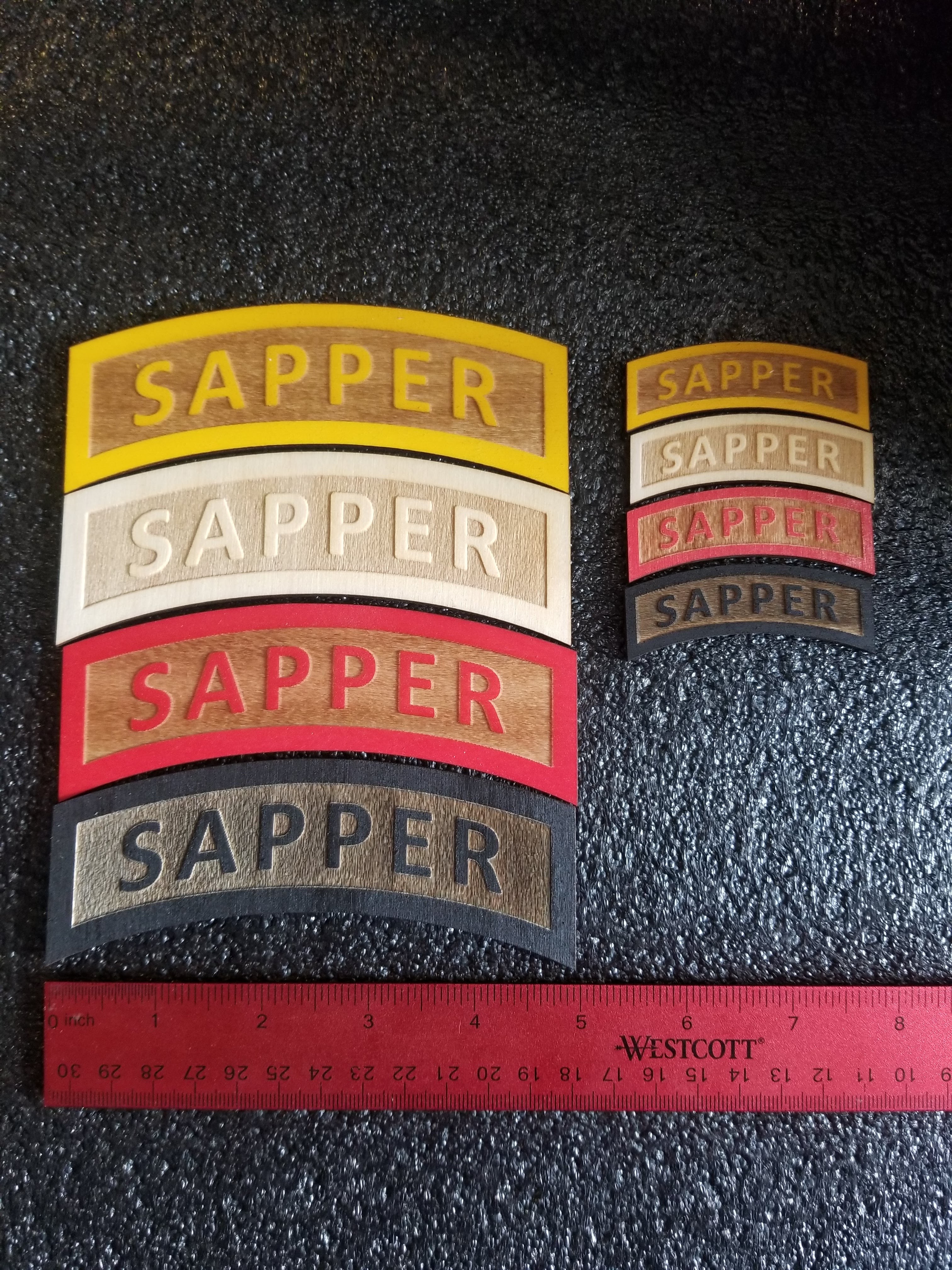

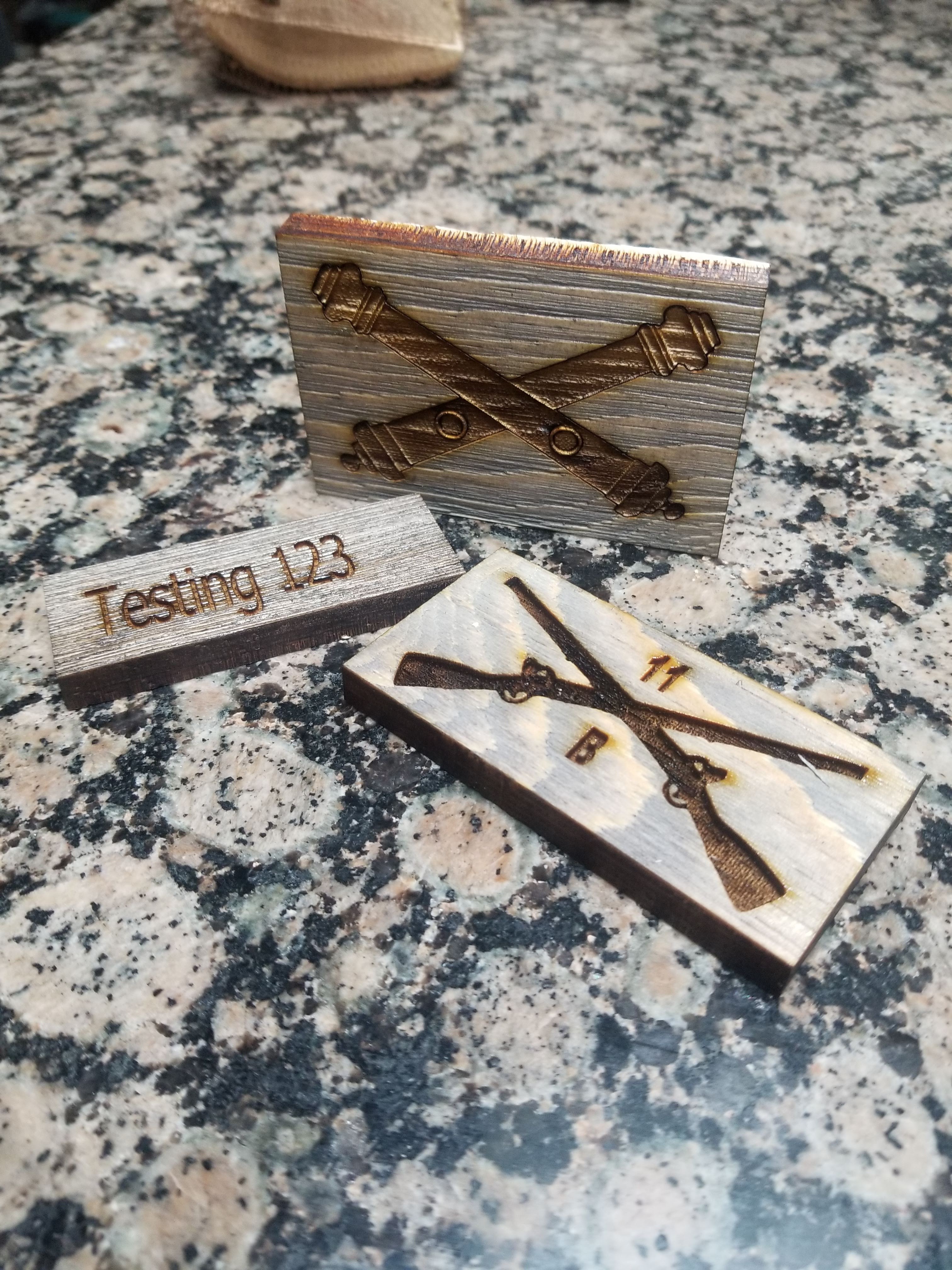

You can see a few of the results below.

20190513_162024

The purchase (eBay):

1 each Laser Engraving Cutting Machine Pro USB 60W Co2 Laser Engraver Cutter 20″ x 28″ from acautoparts04 or search “60W CO2 eBay Laser Engraver”

  • This is 60 Watt CO2 Laser operating in the 10600nm wavelength.  Commonly called the X700 or Redsail there are many clones of this. It is controlled by a RDC6442G-B (EC) Laser DSP Controller that works with RDWorks8 Software (included on the CD).
  • About $1800.00 plus $150.00 for Residential Delivery. Residential delivery is a separate item you will need to purchase for a truck that comes with a lift gate.

1 each Vevor 110V 60Hz CW-5200DG Industrial Water Chiller for CO2 Laser Tube or search “CO2 Laser Chiller”

  • The laser comes with a tub with no lid and a large aquarium pump.  I didn’t like that option so I ordered an industrial chiller.  You can opt for a 3000 of 5200 model, I purchased a 5200.
  • NOTE: You will need spare fuses for the Chiller.  10 amp 250v fuse 5x20mm  I bought a large pack, I am up to 15 amp and holding strong.  The fuse is locate at inside the plug in the back.  Lock close, it pulls out with a flat head screwdriver.
  • Needs to be set to 30C or below to prevent laser degredation.  I run at 16C.

1 each Rotary Axis for CO2 Laser

1 pair CO2 Laser Protective Glasses must cover 10600nm wavelength.

1 each 4″ 6″ 8″ Inch Inline Duct Fan Ventilation Exhaust Plastic Fan w/Speed Controller or search “Inline variable speed fan 6 inch”

  • The laser comes with a loud and inefficient Exhaust Fan.. this will quiet things down.

1 each Spare CO2 Laser ZnSe Lense, 18mm Diameter, 38.1 (1.5 inches) Focal Length or search “co2 laser znse Lense, 18mm Diameter 38.1 Focal Length”

  • My lense was damaged but was replaced by warranty quickly.  I bought a few spares.

3 each Spare CO2 Laser Si Mirror 25mm Mirror

1.5 Gallons of Distilled Water from my local Safeway

1/4 Teaspoon Dawn Dishwashing Soap to prevent bubbling in the laser tube

1 cap Regular Unscented Bleach to prevent Algae and microbe growth

3-4 Weeks of Waiting.

You will also need 4 110V plug ins.

Arrival and Preparation:

The laser arrived in a solidly built plywood box.  It was relatively easy to open.  The laser is secured to the bottom pallet with 4 long angry screws.  Once removed you can roll it off the pallet.  It will require someone strong to help, you have to get the hose out from under the machine.

The laser has 4 heavy duty wheels which  make it easy to roll around.  When in place, you screw down 4 rubber stoppers to prevent movement.

IMG_20190513_115901

The delivery was on time

IMG_20190513_120144

The driver lowered it with the drop bed and rolled it into my Garage with a pallet jack.

IMG_20190513_120200

Pretty cool but also heavy.  I broke out the crow bar.

20190513_160318

Hello!

20190513_160719

Access Granted.

20190513_161936

Well packed

20190513_162024

Lots of goodies packed inside.

20190513_162401

The tub is actually the water basis that you are expected to use.

20190513_162428

We have the keys!

20190513_162517

Clean wiring, from Left to right, Controller, 20190513_162523

Meet the RDC6442G-B (EC)

20190513_163248

Remove the protective paper from the lid sheeting.20190513_163356

Remove the screws, remove the coating and reinstall

IMG_20190513_163646

Another view.

IMG_20190513_164103

All cleared up.

IMG_20190511_203853

The chiller

IMG_20190511_203931IMG_20190511_203934

It was kind of wet but still worked.

IMG_20190511_204038

All the goodies.

IMG_20190511_204051

A view from the side panel.

Setup:

This is a quick and dirty list for setup.  I will expand with more detail soon.

Open crate

Unbolt 4 screws on leveling pads.. 8mm socket

Loosen leveling pads with 26mm wrench

Remove two big blue hoses by lifting one side.. heavy lift, bring a friend.

Lift one edge to remove box fan.

Keys are tied with ribbon inside lid

Laser carriage is tied with ribbon.. Remove ribbon and remove box

Remove 4 screws, loosen 4 to remove paper on viewing window x 2

Unbox air compressor.. Test by plugging in directly to wall

Unbox fan, Test by plugging in directly to wall

3 hoses, 1 for air 2 for water, in out

Chiller fill and prime and turn on, set. Chiller will blow fuses if in a hot area

Zipties to connect water and air lines rather than hose clamps

Ground your laser.

Check lenses, mirrors, belt guides (especially down low in the back) for tightness.

Clean lenses and mirros with Lense Cleaning Wipes

Laser alignment –

With laser turned on, use tape or post-it notes and press pulse.  Sometimes you will not see the hole, look close after each shot.  The longer you hold pulse, the longer the laser will burn.

This is a pain and takes patience.  More details coming shortly.

Start with lense closest to laser tube verify center plus or minus 4mm
Lense 2.. center as best as possible at near and far settings
Lense 3.. dead nuts near and far for all corners. The more test shots the better
Lense 4 – laser head vertical alignment… laser needs to be shooting straight down, you can use a square to verify laser head alignment.

Test cut

Straight line on test piece of 3mm wood to determine best kerf.  Wood should be sitting 3mm piece of wood on one end like a ramp.

Laser should be bright when cutting

Laser works RDworks from CD.

  • Power setting 1 and 2 should be the same
  • Need to adjust diameter in user settings when using rotary.
  • More to follow.

Use Inkscape (free), Gimp (free), Corel or Photoshop/Illustrator to manipulate images.

I owe you more, it’s on the way.
